Metro Route 2020

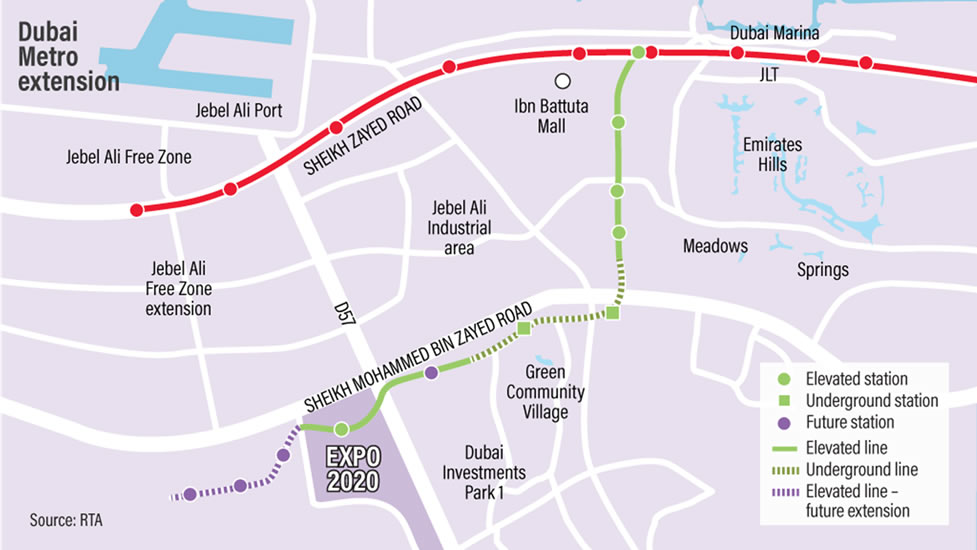

The 15 km branch will start at Nakheel Harbour & Tower on the existing Red Line, then run on 11.8 km of viaduct with stations serving The Gardens, Discovery Gardens and Al Furjan. The stations at Jumeirah Golf Estates and Dubai Investment Park would be on a 3.2 km underground section, before the terminus at Expo 2020 site.

ALSTOM TRANSPORT SA, 48 rue Albert Dhalenne-93400 Saint Ouen, France acting through its Branch in Dubai (United Arab Emirates ) awarded us in May 2018 for Project Testing and Commissioning Services for the Route 2020 Metro Project

Enhancement Stations

  • RL Emirates
  • Abu Hail
  • FGPDPS
  • MOE TPS
  • Intenet City
  • Emirates
  • Danube
  • Al Nahda
  • Oudmehta
  • Jebal ali Dept
  • Rashidhiya Dept

Extension Metro Stations

  • R72
  • R73
  • New SR
  • R70
  • R71
  • R75
  • R38 NHT
  • R76/EXPO
  • Booster stn Expo
  • R74

Enhancement Stations Scope

  • TPS :Enhancement Stations Scope
  • TPS :2300 KVA 33kV/ 413V/ 465V HESOP transformer
  • TPS :2700 KVA 33kv/ 2x585v rectifier transformer
  • TPS :750 VDC 10000 A Traction Protection Board TPB
  • TPS :750 VDC Traction Distribution Board TDB
  • TPS :2000 KW Hesop converter
  • TPS :2500 KW rectifier units + Negative automatic isolating switches
  • TPS :Filter Units and self inductance
  • TPS :Negative panel + OVPD + stray current drainage
  • TPS :230 V/400 VAC UPS inverter (60KVA)
  • TPS :110V Duel 250A Battery Charger with Dropping Diode
  • TPS :Battery Bank for UPS (60 KVA )
  • TPS :110V Battery Bank laong with Battery rack
  • TPS :AC/DC distribution boards
  • TPS : Blue Light Stations
  • TPS :ACC,ETS, and automation integration
  • TPS :Review and change settings if necessary of existing TPS's protection relays.

Extension Metro Stations Scope

  • TPS : 33kV GIS New Switchgear (33kV-1250A-50Hz)
  • TPS :3500 KVA 33kv/400v auxiliary transformers
  • TPS :3150 KVA 33kv/400v auxiliary transformers
  • TPS :2500kVA 33kV/400V auxiliary transformers
  • TPS : 1500kVA 33kV/400V auxiliary transformers
  • TPS : 500kVA 33kV/400V auxiliary transformers
  • TPS :2300 KVA 33kV/ 413V/ 465V HESOP transformer
  • TPS :2700kVA 33kV/ 2x585V rectifier transformer
  • TPS : 750Vdc 10000 A Traction Protection Board TPB
  • TPS :750Vdc Traction Distribution Board TDB
  • TPS :2000kW Hesop converter
  • TPS : 2500kW rectifier units + Negative automatic isolating switches
  • TPS :Filter Unit
  • TPS :Negative panel + OVPD + stray current drainage
  • TPS : 230 V/400 VAC UPS inverter (100KVA)
  • TPS : 230 V/400 VAC UPS inverter (120 KVA)
  • TPS : 230 V/400 VAC UPS inverter (20KVA)
  • TPS :110V Duel 250A Battery Charger with Dropping Diode
  • TPS :110V Duel 100A Battery Charger with Dropping Diode
  • TPS :Battery Bank for UPS (100 KVA )
  • TPS :Battery Bank for UPS (120 KVA )
  • TPS :Battery Bank for UPS (20 KVA )
  • TPS :110V Battery Bank laong with Battery rack
  • TPS : AC distribution boards
  • Line/TPS : Blue Light Stations
  • TPS :ACC,ETS, and automation integration
  • TPS/Line :LIS (Line insulating switch)
